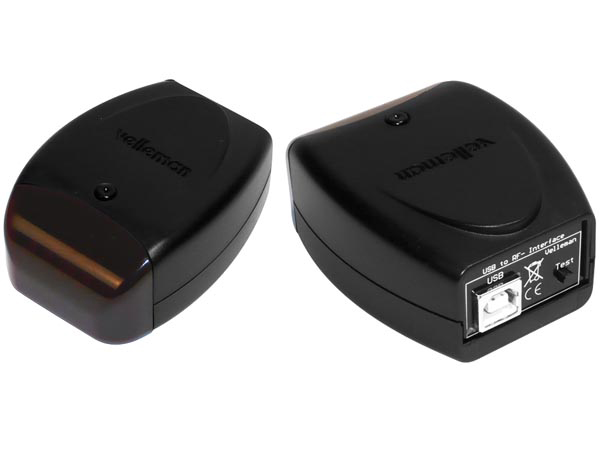

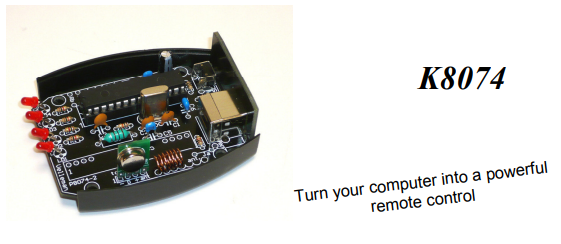

USB TO RF REMOTE CONTROL TRANSMITTER

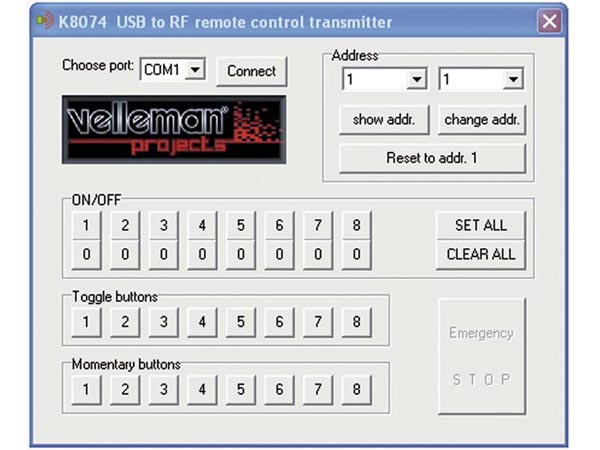

Simply connect to the USB port, install the driver and you are set. The transmitter works together with our K8056 card, equipped with an RX433N receiver module. Also our K8070 / VM119 one channel receiver can be used. In total a combination of 255 cards can be addressed, resulting in a maximum of 2040 channels !! Drivers and example software can be downloaded from our web site. A DLL is provided to create your own application. Specifications USB1.1 or 2.0 port compliant Up to 30m (depends on environment) Works with:RF transmit indicator LED8-Channel remote relay card: K8056 (+RX433N) One channel dual output RF receiver: K8070 / VM119 RGB controller with RF remote: VM151 Power LED USB port function LED’s 255 selectable addresses Transmit—test button 433MHz transmitter R&TTE compliant design Power supply : USB Dimensions: 80x55x35mm / 3,14×2,16×1,37″ Includes enclosure
