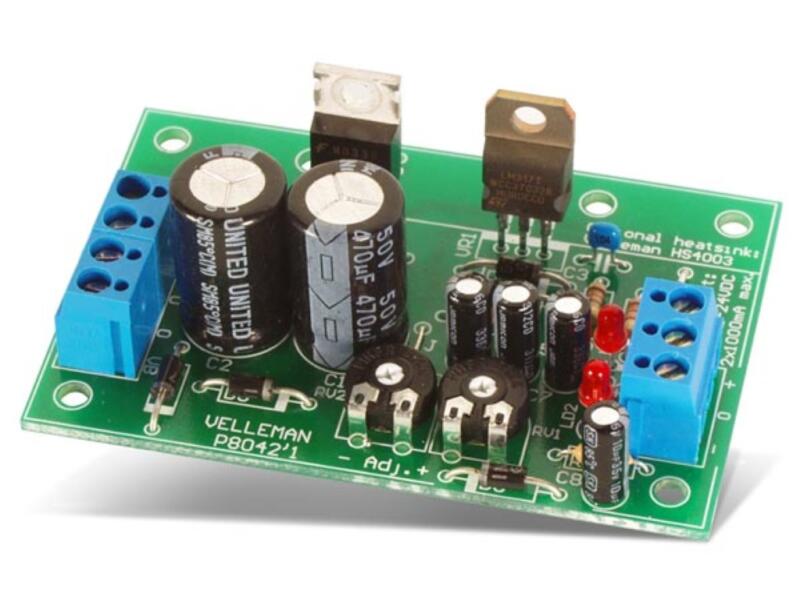

SYMMETRIC 1A POWER SUPPLY

Features Just add a suitable transformer and a heatsink Ideal for e.g. op-amp applications, amplifiers, … Trimmers can be replaced by potmeters to allow continuous adjustment of output voltage LED output indicators Compact size Specifications Positive and negative output adjustable between 1.2 and 24VDC Output current: up to 2 x 1A continuous (with suitable heatsink) Max. input voltage: 2 x 24VAC Very good line and load regulation Low ripple Short circuit protection Thermal protection Optional heatsink: HS4003 (for maximum 20W dissipation) Dimensions: 78 x 52 x 24mm / 3.1 x 2 x 0.9″
