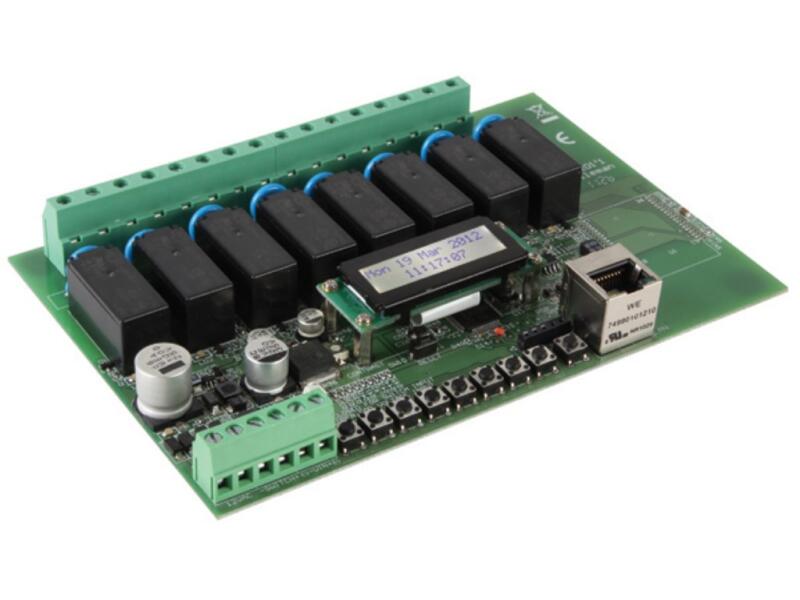

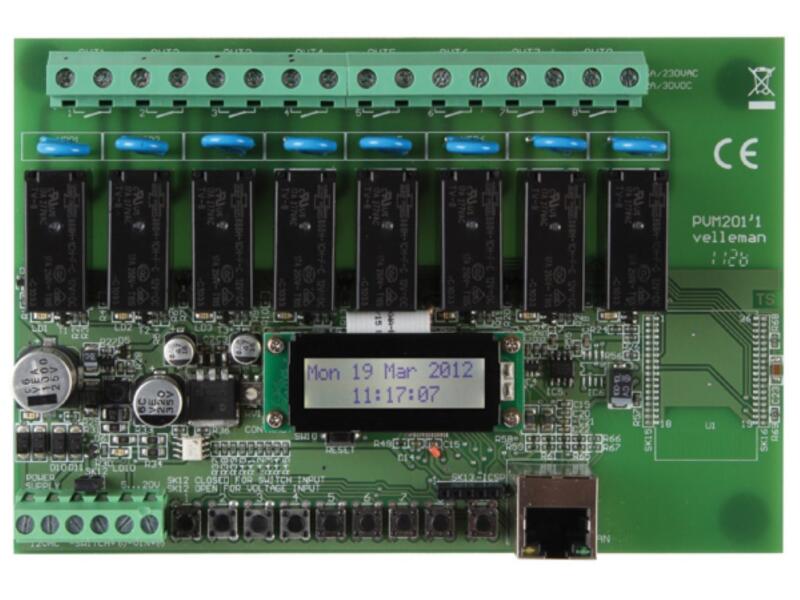

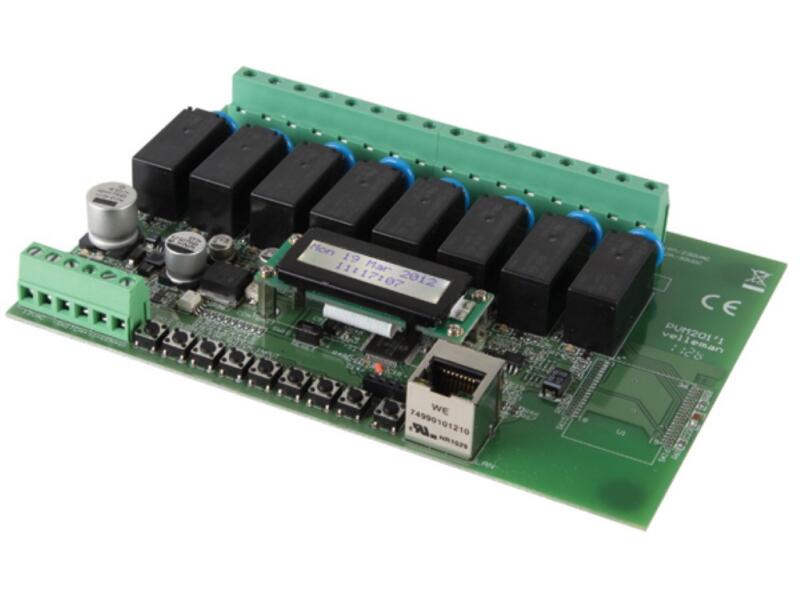

ETHERNET RELAY CARD

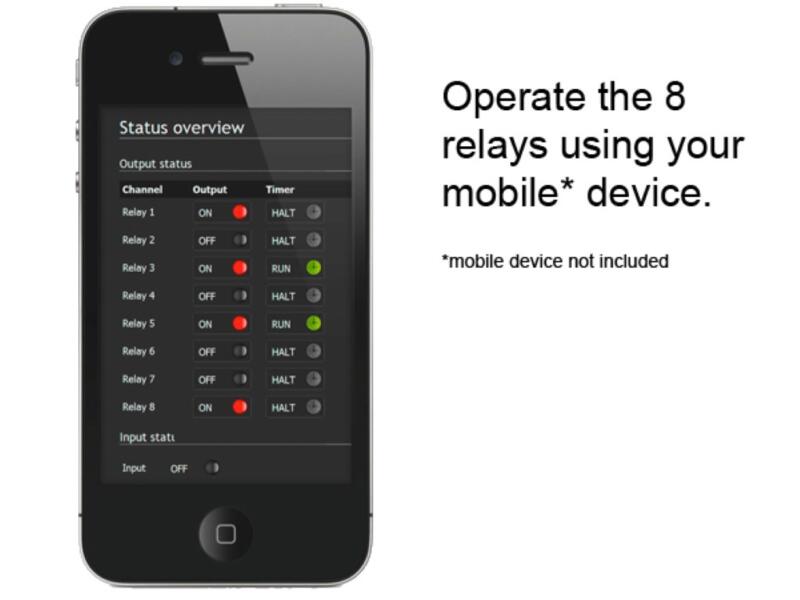

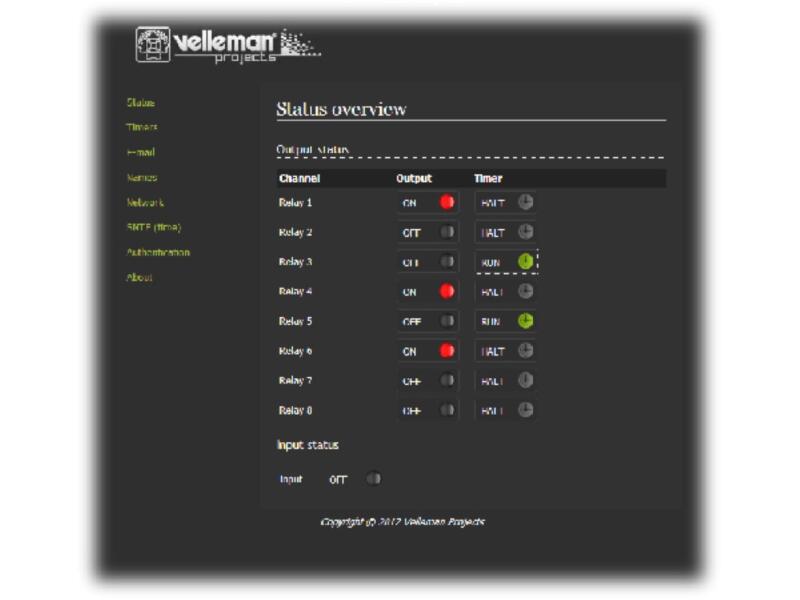

The card is web server based, so almost any internet browser can connect to the card, even mobile devices. No additional software installation required. The unit has numerous extra features such as reports by email at power up or input status change, programmable timers for each output, labeling of outputs etc… VM201 demo on YouTube Features IEEE 802.3 compatible Ethernet controller Supports 10 Base-T Port (10Mbps) Static IP or DHCP User definable NETBios name Use SNTP time server as real time clock (Internet time server) Sends E-mail at power up and input events (activated and/or deactivated) Web interface for configuration and operation TCP server (user definable port) LCD displays clock or network settings User definable names for all in- and outputs Multiple users (1 administrator and 3 additional users) Timer programs for all 8 channels Maximum 28 timer programs Scheduler: day, weekend, working days, every day and every day except Sunday Program actions: on, off or pulse (1 to 99 sec, 1 to 99 min or 1 to 99 hours) Specifications 8 relay contacts: 12A @ 30Vdc or 16A @ 230Vac 1 input: dry contact or voltage input 5…20Vac or dc power supply: 12Vac/500mA Extras information about the e-mail function If your internet provider uses an SSL or TLS connection, you will not be able to use the e-mail function. Android application This app allows you to control the Velleman VM201 Ethernet 8CH relay card from a remote location, via a wireless router. With this app you can:Turn a relay on or off.Monitor the status of each relay (on or off).Activate or deactivate the week program for each relay.Monitor the status of the VM201 input. Android application Apple Application This app allows you to control the Velleman VM201 Ethernet 8CH relay card from a remote location, via a wireless router. With this app you can:Turn a relay on or offTurn all relays off Monitor the status of each relay (on or off)Set a sleep timer for each relay (1s to 99h)Activate or deactivate the week program for each relayMonitor the status of the VM201 input Apple Application
