CODE LOCK

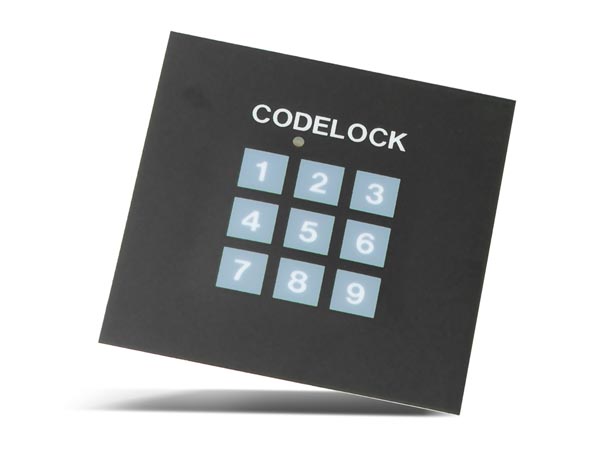

This code lock may be used to switch an alarm (e.g. car alarm K3504) on and off, or to open a door lock. An LED on the operating panel indicates the position of the ‘lock’. The code is easy to define. Because the operation panel is completely enclosed, it may be used inside and outside the house. Specifications More than 3000 codes (4 digits) Relay output: 5A / 220V Time limit for code entry: ± 5 seconds Power supply: 9 – 15VDC or 8 – 12VAC Power consumption: Output on: 40mA Output off: 0.3µA Dimensions: Front panel: 80 x 80mm / 3.2 x 3.2″ Depth: 40mm / 1.6″ Hints If not already mentioned replace R8 with a 10ohm type.
