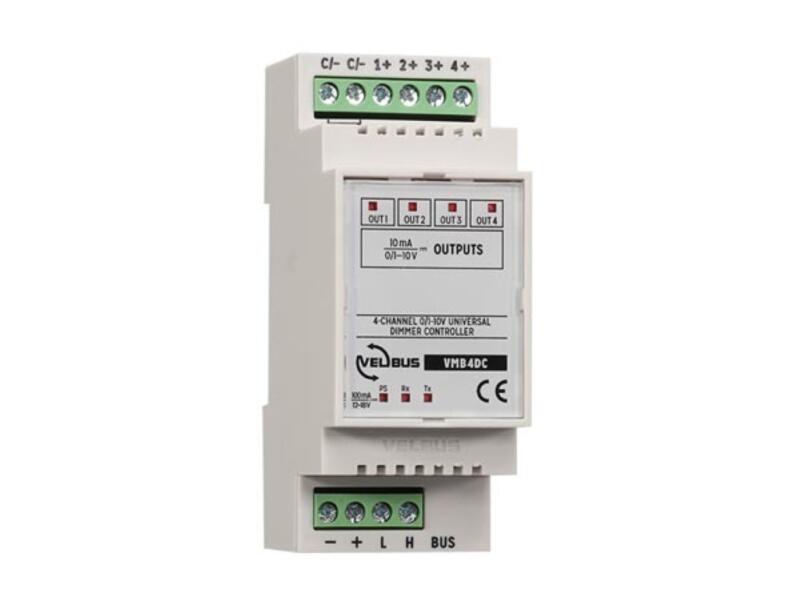

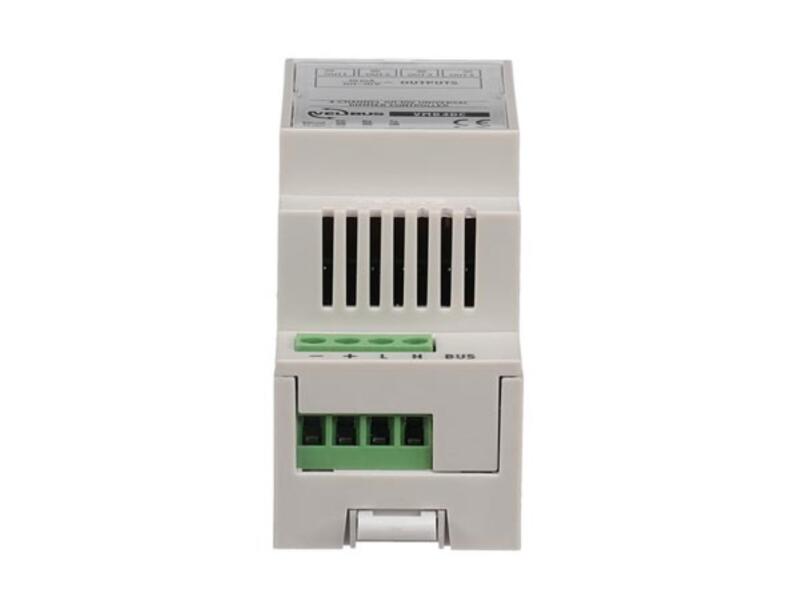

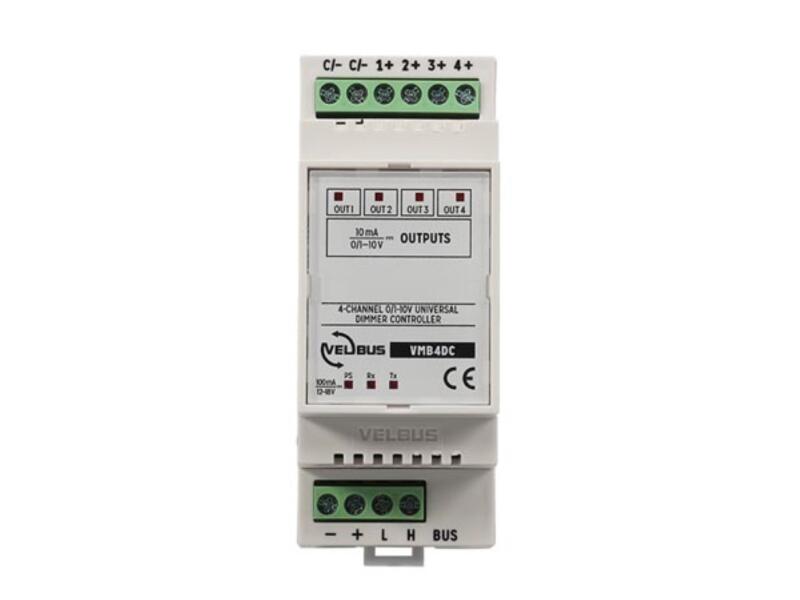

4 CHANNEL 0(1)…10V OUTPUT CONTROLLER

Can be used to control various dimmers or fixtures. Create an atmosphere which suits you best or let your lights dim slowly to avoid unexpected surprises. It is also possible to simulate a sunrise which makes waking up a lot more pleasant! Programmable with Velbuslink version 8 or higher. Configuration: via PC. Features Different operation modes: moment control, on/off control, timers, slow on/slow off, dimming, moods… Free programmable timer functions (using Velbus Link software and USB/RS232 interface: VMB1USB, VMB1RS or VMBRSUSB) 0 to 10V output or 1 to 10V output possibility 4 independent adjustable channels 250 possible id addresses On board buttons for testing purposes Velbus® connection Specifications 2 Modules wide on the DIN rail required power supply: 14V (12…18VDC allowed) firmware upgradeable through the Velbus system power consumption: 100mA max. (45mA standby)
